Technical parameters of FDLW horizontal decanter decanter centrifuge：
project | technical parameter | ||||
FDLW450-842N | FDLW600-945N | FDLW355-1250N | FDLW450-1250N | FD-1865-HD | |
Max Treating Capacity（m³/h） | 40 | 60 | 40 | 60 | 90 |
Min Cut Point（μm） | 5~7 | 5~7 | 2 | 2 | 2 |
Speed（rpm） | 1650-2200 | 1600 | 2600/3200 | 2000-2500 | 2600 |
Separation factor | 686-1219 | 860 | 1345/2035 | 2250 | 1700 |
Main Motor（kw） | 18.5 | 37 | 37 | 37 | 75/55 |
Auxiliary Motor（kw） | 5.5 | 7.5 | 11 | 7.5 | 22 |
Dimension（mm） | 2600x1740x1300 | 3000x1900x1410 | 3050x1800x1320 | 3060x1800x1400 | 3630x1850x1380 |
Weight（kg） | 2200KG | 3500KG | 3000KG | 3700KG | 4500 |

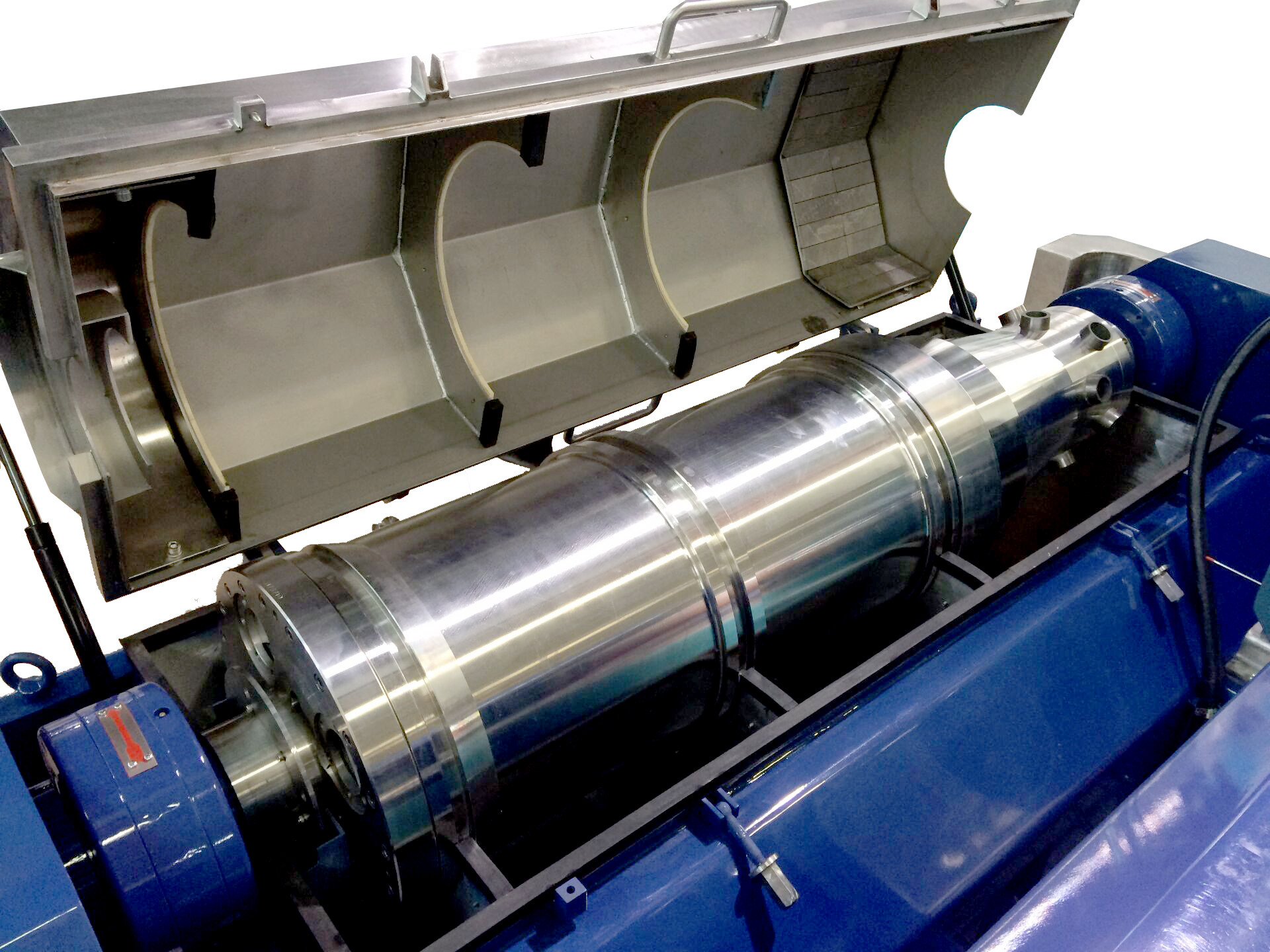

FD Petrol DW2000 decanter centrifuge utilize 316L stainless steel material bowl, screw conveyor welded with tungsten carbide tile , matched with advanced PLC panel special designed for drilling waste management treatment.It is the best partner for SGL-02 cuttings dryer.
Drilling Waste Management Centrifuge Specs
| Model | DW-2000 |
| Max Design Speed | 4000RPM |
| Max Operation Speed | 0-3400RPM |
| Max Design Torque | 12000Nm |
| Working Torque | 6000Nm |
| Control Panel | PLC Stainless Steel Explosion Proof |
| Screw Protection | Tungsten Carbide Tile |
| Electrical Components ABB&Schneider | |
